RCA2.5G25N PUMP by AR (6658)

Product Description

RPM: 1750
Shaft size: 24mm
Max GPM: 2.5
Max PSI: 2500
Inlet Thread: 1/2” F
Discharge Thread: 3/8” F

The RCA25G25N is a commercial triplex plunger pump designed for a wide variety of high pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearings on the drive side, and ball on the non-drive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement.

Manifold: High strength forged brass for long term use
Bolts: Eight 6mm
Plungers: NEW Ceramic Plungers, thicker wall to help pre- vent thermal shock
Valves: Stainless Steel, valve seat o-ring is side mounted
Seals: High quality high pressure seals. NEW low-pressure seal with a built in scraper
Piston Guides: Two piece piston guides
Drive End: NEW connecting rod with 12% more load surface. Large side cover sight glass, oversized bearing. Rear cover oil drain.
Crankshaft: Forged, precision ground.

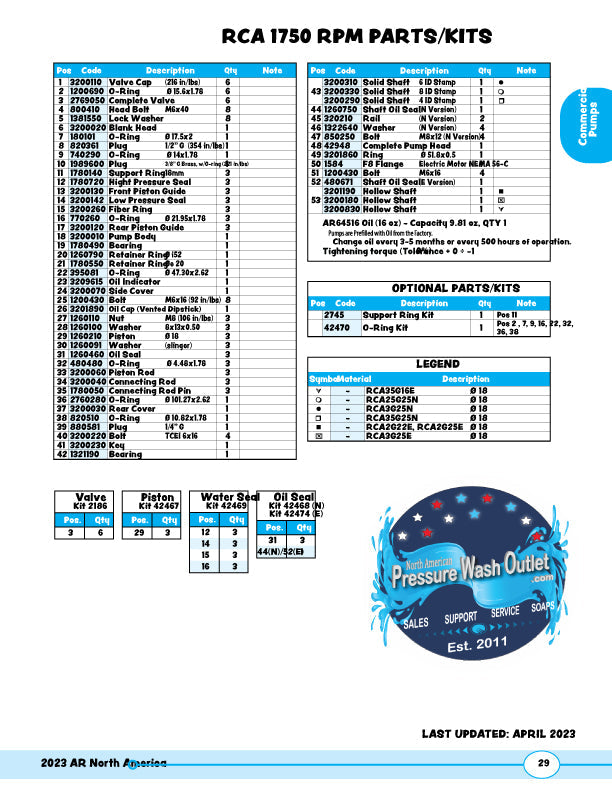

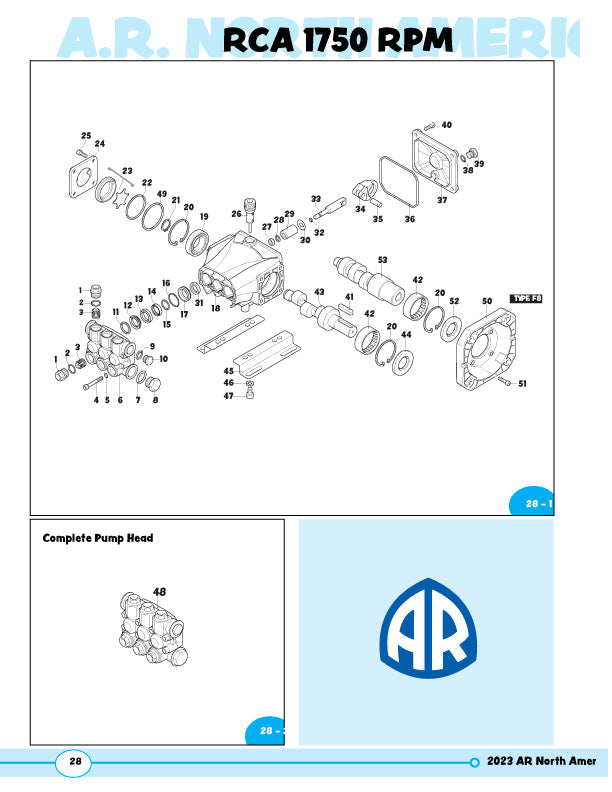

PUMP BREAKDOWN
$ 326.53
