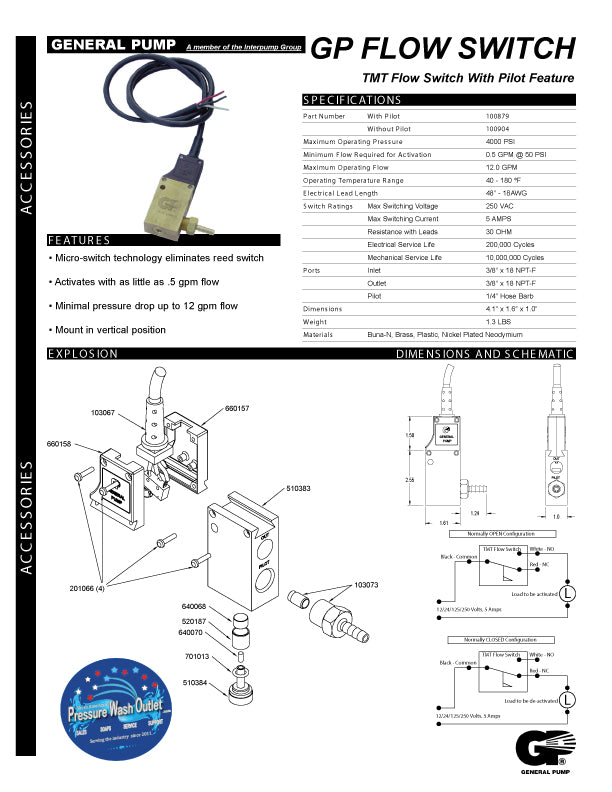

100879 FLOW SWITCH TMT, PILOT, 12 GPM (5193)

Product Description
FEATURES:
  • Micro switch technology eliminates reed switch
  • Highpressure inline flow switch
  • Activates with as little as .5 gpm flow
  • Minimal pressure drop up to 12 gpm
  • Mount in vertical position

SPECIFICATIONS:

  • 4000 PSI operating pressure
  • 12 GPM maximum flow
  • 40-180 F operating temperature
  • Lead length: 48" 18awg
  • 250 VAC switching voltage maximum
  • 5 Amps switching current maximum
  • 30 OHM contact resistance with leads
  • 200,000 operations electrical service life
  • 10 million operations mechanical service life
  • Inlet: 3/8" FPT
  • Discharge: 3/8" FPT
  • Pilot: 1/4" hose barb



  • Install the flow switch VERTICALLY to the output side of the unloader, with the 2 conductor lead wires exiting from the top. If your system uses a downstream chemical injector, it should be mounted on the output side of the flow switch. Pilot model requires a direct connection to the water supply feed line to provide a pilot signal. This is accomplished by installing a tee fitting (with a 1/4" hose barb fitting) directly in the water supply feed line. The tube must be installed before the float valve. Install an appropriate length of 1/4" ID reinforced polyvinyl tubing between the tee fitting and the valve pilot port.



$ 132.43
